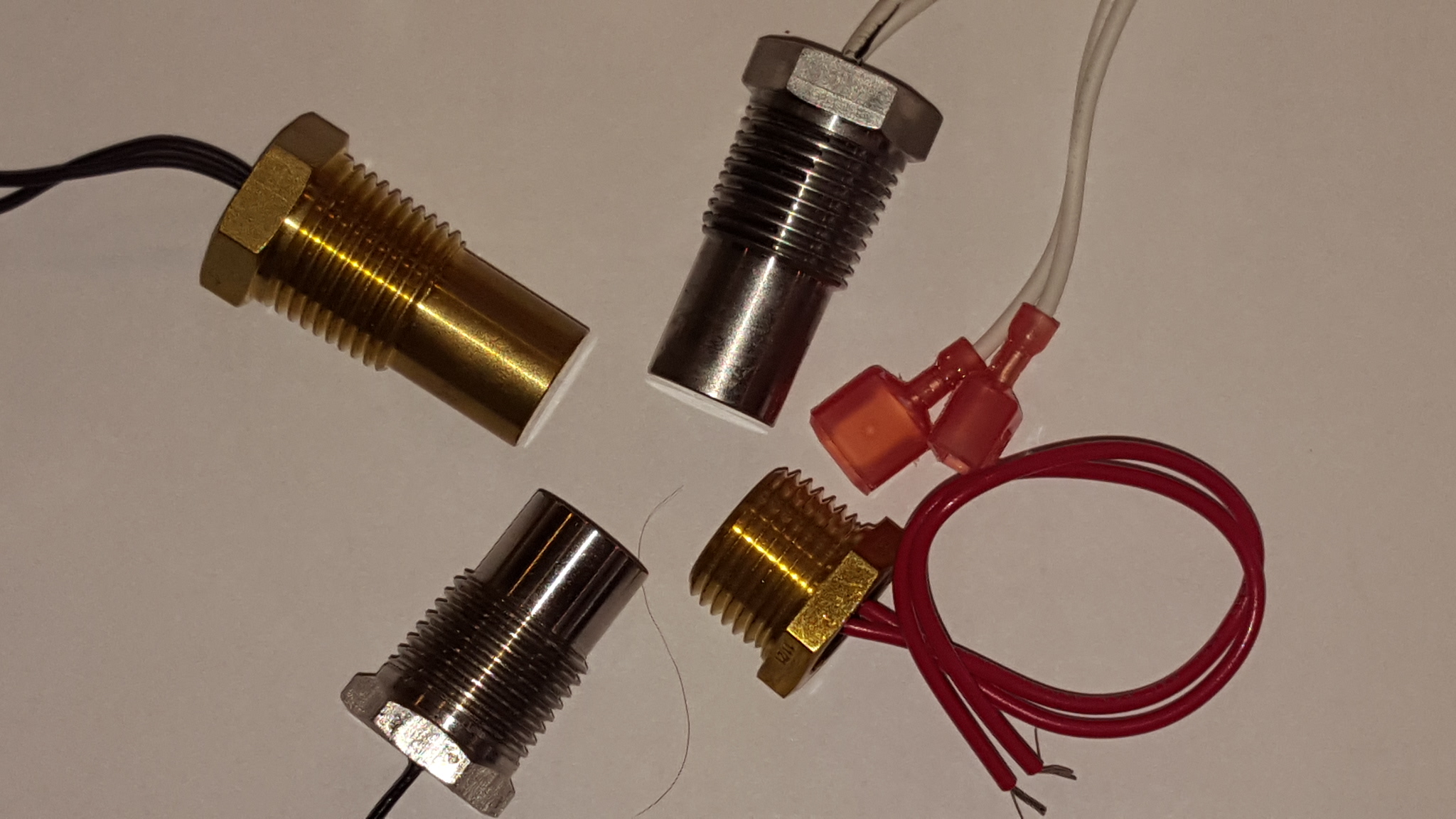

Probe Thermostats
Probe thermostats use a bi-metallic snap action switch that is potted in a stainless steel, brass or other housing material on request. The probes are used to sense air or fluid and are mounted via an NPT thread or a flange. These sensors are typically used as an over temperature protection device and can be designed to either open or close an electrical circuit at a pre-set temperature. Probes can be used in control applications with designs that have tight hysteresis.
Standard Features:
- *Brass or 304 SS Housing – Various Housings in Stock
- *Temperature Range 0-175 C (higher and lower temperatures on request)
- *Max 16 Amps/250 VAC, Min 100 mA DC
- * Tolerance to +/- 1 C Depending on Temperature
- * Wire Leads with Quick Connect Option
| Basic Technical Data - Probe Thermostats | |
|---|---|
| Parameter Name | Value |
| Nominal Voltage - V not more than | 250 |
| Nominal Current - A at power coeff 0.95 not more than | 16 |
| Switching Cycles at 16A and coeff. 095 not less than | 30000 |
| Switching Cycles at 10A and coeff. 095 not less than | 100000 |
| Contact Resistance, ohms - not more than | 0.05 |
| Electrical Strength of insulation - V not less than | 1500 |
| Degree of Protection of Thermostat Case | IP64 |
| Heating Speed, K/min | min-0.1/max 1,0 |
| Approvals - internal thermostat (up to 175C) | VDE, CSA (US/Can) |
